Introduction

OpenCTI supports multiple ways to integrate with other systems which do not have native connectors or plugins to the platform. Here are the technical features available to ease the connection and the integration of the platform with other applications.

Connectors list

If you are looking for the list of OpenCTI connectors or native integration, please check the OpenCTI Ecosystem.

Native feeds and streams

To ease integrations with other products, OpenCTI has built-in capabilities to deliver the data to third-parties.

CSV Feeds

It is possible to create as many CSV feeds as needed, based on filters and accessible in HTTP. CSV feeds are available in Data > Data sharing > CSV deeds.

When creating a CSV feed, you need to select one or multiple types of entities to make available. Then, you must assign a field (of an entity type) to each column in the CSV:

CSV Feeds

Details

For more information about CSV feeds, filters and configuration, please check the Native feeds page.

TAXII collections

Most of the modern cybersecurity systems such as SIEMs, EDRs, XDRs and even firewalls supports the TAXII protocol which is basically a paginated HTTP STIX feed. OpenCTI implements a TAXII 2.1 server with the ability to create as many TAXII collections as needed in Data > Data sharing > TAXII Collections.

TAXII collections are a sub-selection of the knowledge available in the platform and rely on filters. For instance, it is possible to create TAXII collections for pieces of malware with a given label, for indicators with a score greater than n, etc.

TAXII Feeds

Live Streams

After implementing CSV feeds and TAXII collections, we figured out that those 2 stateless APIs are definitely not enough when it comes to tackle advanced information sharing challenges such as:

  • Real time transmission of the information (i.e. avoid hundreds of systems to pull data every 5 minutes).
  • Dependencies resolution (i.e. an intrusion created by an organization but the organization is not in the TAXII collection).
  • Partial update for huge entities such as report (i.e. just having the update event).
  • Delete events when necessary (i.e. to handle indicators expiration in third party systems for instance).

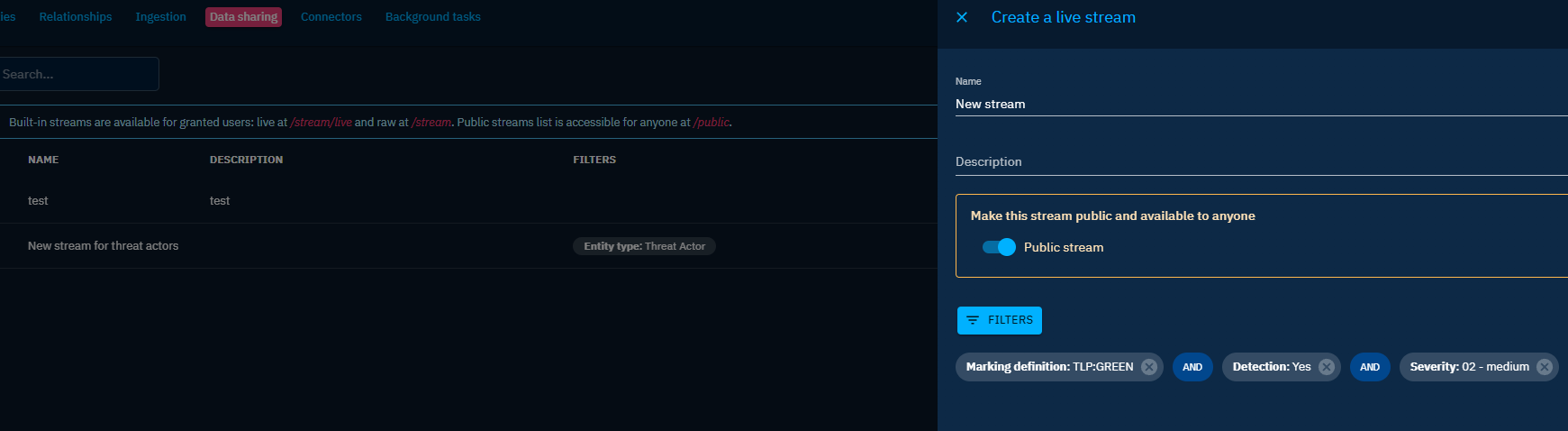

That's why we've developed the live streams. They are available in Data > Data sharing > Live streams. As TAXII collections, it is possible to create as many streams as needed using filters.

Streams

Streams implement the HTTP SSE (Server-sent events) protocol and give applications the possibility to consume a real time pure STIX 2.1 stream. Stream connectors in the OpenCTI Ecosystem are using live streams to consume data and do something such as create / update / delete information in SIEMs, XDRs, etc.

Authentication

For all previously explained capabilities, as they are over the HTTP protocol, 3 authentication mechanisms are available to consume them.

  1. Using a bearer header with your OpenCTI API key

    Authorization: Bearer a17bc103-8420-4208-bd53-e1f80845d15f


    API Key

    Your API key can be found in your profile available clicking on the top right icon.

  2. Using basic authentication

    Username: Your platform username
    Password: Your plafrom password
    Authorization: Basic c2FtdWVsLmhhc3NpbmVBZmlsaWdyYW4uaW86TG91aXNlMTMwNCM=

  3. Using client certificate authentication

    To know how to configure the client certificate authentication, please consult the authentication configuration section.

API and libraries

GraphQL API

To allow analysts and developers to implement more custom or complex use cases, a full GraphQL API is available in the application on the /graphql endpoint.

The API can be queried using various GraphQL client such as Postman but you can leverage any HTTP client to forge GraphQL queries using POST methods.

Authentication

The API authentication can be performed using the token of a user and a classic Authorization header:

Content-Type: application/json
Authorization: Bearer 6b6554c4-bb2c-4c80-9cd3-30288c8bf424

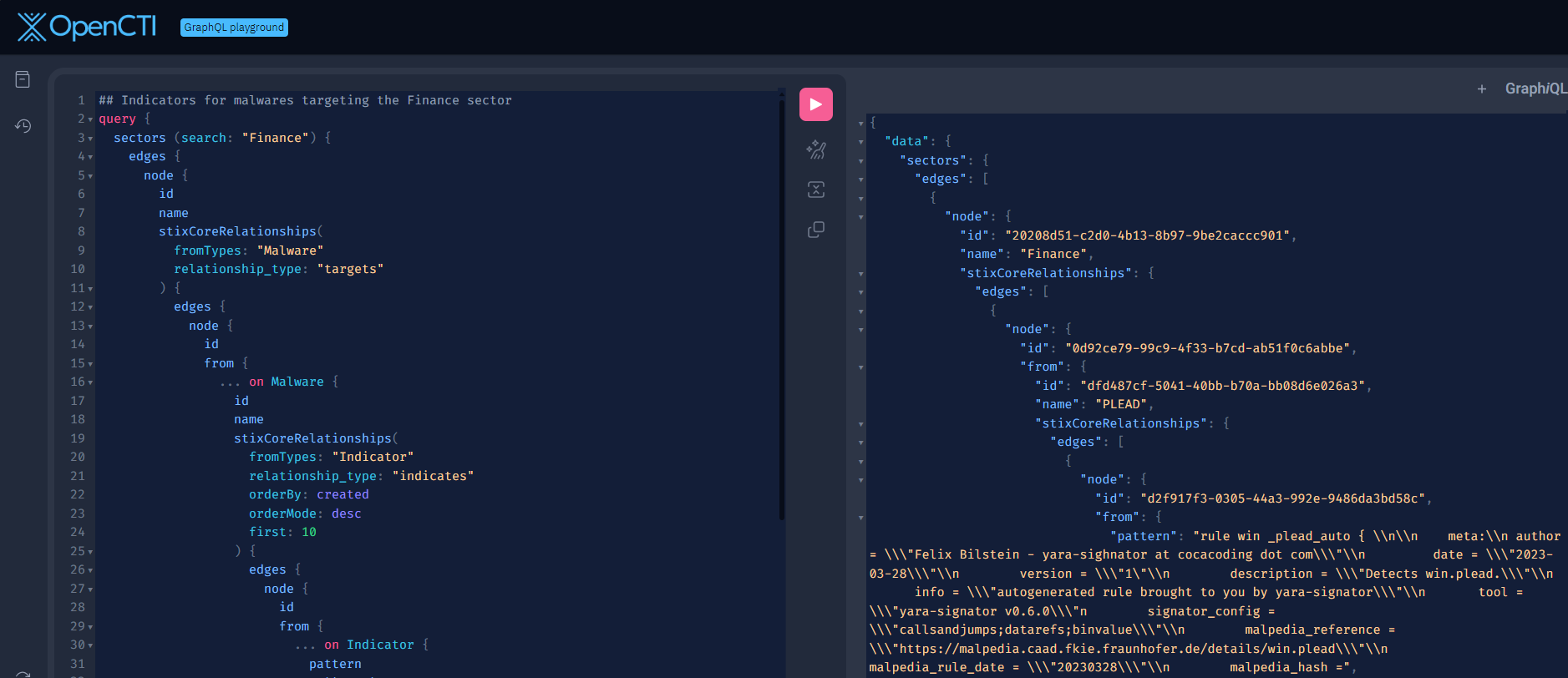

Playground

The playground is available on the /graphql endpoint. A link button is also available in the profile of your user.

Playground

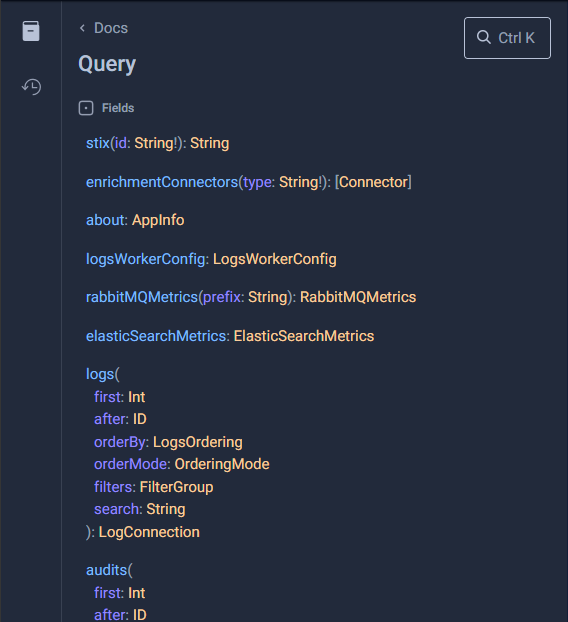

All the schema documentation is directly available in the playground.

Schema

If you already logged to OpenCTI with the same browser you should be able to directly do some requests. If you are not authenticated or want to authenticate only through the playground you can use a header configuration using your profile token

Example of configuration (bottom left of the playground):

Playground authentication

Additional GraphQL documentation

To find out more about GraphQL and the playground, you can find two additional documentation pages: the GraphQL API page and the GraphQL playground page.

Python library

Since not everyone is familiar with GraphQL APIs, we've developed a Python library to ease the interaction with it. The library is pretty easy to use. To initiate the client:

# coding: utf-8

from pycti import OpenCTIApiClient

# Variables
api_url = "http://opencti:4000"
api_token = "bfa014e0-e02e-4aa6-a42b-603b19dcf159"

# OpenCTI initialization
opencti_api_client = OpenCTIApiClient(api_url, api_token)

Then just use the available helpers:

# Search for malware with the keyword "windows"
malwares = opencti_api_client.malware.list(search="windows")

# Print
print(malwares)

Details

For more detailed information about the Python library, please read the dedicated section.
